[ Verilog Tutorial ] Common Combinational Components : 4x1 MUX

來源自 這裡

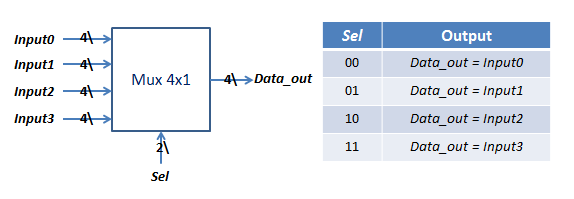

Equation:


Example:
  1. // mux_4t4.v
  2.
  3. // 4t4 MUX
  4.
  5. // ------------------------------------------------------------------
  6. // Copyright (c) 2006 Susan Lysecky, University of Arizona
  7. // Permission to copy is granted provided that this header remains
  8. // intact. This software is provided with no warranties.
  9. // ------------------------------------------------------------------
  10.
  11. // 4 data inputs (4 bits), and 1 output.  Select inputs determine
  12. // which data input passes through to the output
  13.
  14. // Truth table for 4x1 MUX
  15. // S1  S0  | D
  16. // --------+-------
  17. //  0   0  | input0
  18. //  0   1  | input1
  19. //  1   0  | input2
  20. //  1   1  | input3
  21.
  22. `timescale 1ns / 1ns
  23.
  24. module Mux4t4(Input0, Input1, Input2, Input3, Sel, Data_out);
  25.
  26.    input [3:0] Input0;
  27.    input [3:0] Input1;
  28.    input [3:0] Input2;
  29.    input [3:0] Input3;
  30.    input [1:0] Sel;
  31.    output [3:0] Data_out;
  32.    reg [3:0] Data_out;
  33.
  34.    // constant declaration
  35.    parameter S0 = 2'b00;
  36.    parameter S1 = 2'b01;
  37.    parameter S2 = 2'b10;
  38.    parameter S3 = 2'b11;
  39.
  40.    always @ (Sel or Input0 or Input1 or Input2 or Input3)
  41.    begin
  42.       case(Sel)
  43.          S0: begin
  44.             Data_out <= Input0;
  45.          end
  46.          S1: begin
  47.             Data_out <= Input1;
  48.          end
  49.          S2: begin
  50.             Data_out <= Input2;
  51.          end
  52.          S3: begin
  53.             Data_out <= Input3;
  54.          end
  55.       endcase
  56.    end
  57. endmodule
Testbench:
  1. // mux4t4_tb.v
  2.
  3. // 4t4 MUX
  4.
  5. // ------------------------------------------------------------------
  6. // Copyright (c) 2006 Susan Lysecky, University of Arizona
  7. // Permission to copy is granted provided that this header remains
  8. // intact. This software is provided with no warranties.
  9. // ------------------------------------------------------------------
  10.
  11. `timescale 1ns / 1ns
  12.
  13. module Mux4t4TB;
  14.
  15.    reg [3:0] Input0_t, Input1_t, Input2_t, Input3_t;
  16.    reg [2:0] Sel_t;
  17.    wire [3:0] Data_out_t;
  18.
  19.    // module Mux4t4(Input0, Input1, Input2, Input3, Sel, Data_out);
  20.    Mux4t4 Mux_1(Input0_t, Input1_t, Input2_t, Input3_t, Sel_t, Data_out_t);
  21.
  22.    initial
  23.    begin
  24.
  25.       // assign values to input register
  26.       Input0_t <= 0;
  27.       Input1_t <= 1;
  28.       Input2_t <= 2;
  29.       Input3_t <= 3;
  30.
  31.       //case 0 - Input0 value should be display on output
  32.       Sel_t <= 0;
  33.       #10 $display("S=%b; Data_out_t = %b", Sel_t, Data_out_t);
  34.
  35.       //case 1 - Input1 value should be display on output
  36.       Sel_t <= 1;
  37.       #10 $display("S=%b; Data_out_t = %b", Sel_t, Data_out_t);
  38.
  39.       //case 2 - Input2 value should be display on output
  40.       Sel_t <= 2;
  41.       #10 $display("S=%b; Data_out_t = %b", Sel_t, Data_out_t);
  42.
  43.       //case 3 - Input3 value should be display on output
  44.       Sel_t <= 3;
  45.       #10 $display("S=%b; Data_out_t = %b", Sel_t, Data_out_t);
  46.
  47.       // reassign value to input register Input0 and display on output
  48.       Input0_t = 8;
  49.       Sel_t <= 0;
  50.       #10 $display("S=%b; Data_out_t = %b", Sel_t, Data_out_t);
  51.
  52.       // reassign value to input register Input0 and display on output
  53.       Input0_t = 4;
  54.       Sel_t <= 0;
  55.       #10 $display("S=%b; Data_out_t = %b", Sel_t, Data_out_t);
  56.
  57.    end
  58. endmodule
Simulation:


Console 輸出:
# S=000; Data_out_t = 0000
# S=001; Data_out_t = 0001
# S=010; Data_out_t = 0010
# S=011; Data_out_t = 0011
# S=000; Data_out_t = 1000
# S=000; Data_out_t = 0100


Supplement:
4x1 Multiplexer
A multiplexer or mux is a combinational circuits that selects several analog or digital input signals and forwards the selected input into a single output line...
