[ Java 代碼範本 ] JFreeChart : XYChart - XYTaskData set (1)

來源自 這裡

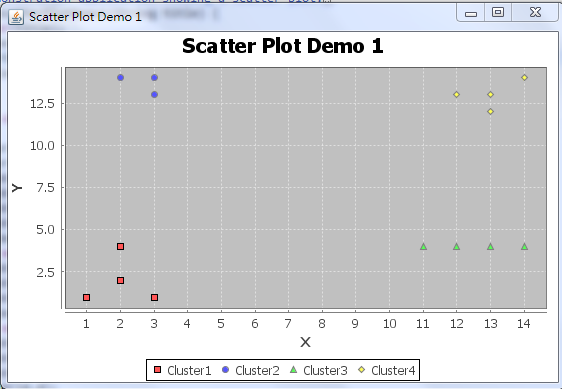

UI 效果: (jfreechart-1.0.14)


範例代碼:
- ScatterPlotDemo1.java
  1. package charts.xy;
  2.
  3. import java.awt.Color;
  4.
  5. import javax.swing.JPanel;
  6.
  7. import org.jfree.chart.ChartFactory;
  8. import org.jfree.chart.ChartPanel;
  9. import org.jfree.chart.JFreeChart;
  10. import org.jfree.chart.axis.NumberAxis;
  11. import org.jfree.chart.plot.PlotOrientation;
  12. import org.jfree.chart.plot.XYPlot;
  13. import org.jfree.chart.renderer.xy.XYLineAndShapeRenderer;
  14. import org.jfree.data.xy.XYDataset;
  15. import org.jfree.data.xy.XYSeries;
  16. import org.jfree.data.xy.XYSeriesCollection;
  17. import org.jfree.ui.ApplicationFrame;
  18. import org.jfree.ui.RefineryUtilities;
  19.
  20. public class ScatterPlotDemo1 extends ApplicationFrame {
  21.
  22.     /**
  23.      * A demonstration application showing a scatter plot.
  24.      *
  25.      * @param title  the frame title.
  26.      */
  27.     public ScatterPlotDemo1(String title) {
  28.         super(title);
  29.         JPanel chartPanel = createDemoPanel();
  30.         chartPanel.setPreferredSize(new java.awt.Dimension(550350));
  31.         setContentPane(chartPanel);
  32.     }
  33.
  34.     private static XYDataset createData()
  35.     {
  36.         XYSeriesCollection my_data_series= new XYSeriesCollection();
  37.         XYSeries s = new XYSeries("Cluster1");
  38.         s.add(1,1);
  39.         s.add(2,2);
  40.         s.add(3,1);
  41.         s.add(2,4);
  42.         my_data_series.addSeries(s);
  43.         s = new XYSeries("Cluster2");
  44.         s.add(2,14);
  45.         s.add(3,13);
  46.         s.add(3,14);
  47.         my_data_series.addSeries(s);
  48.         s = new XYSeries("Cluster3");
  49.         s.add(11,4);
  50.         s.add(12,4);
  51.         s.add(13,4);
  52.         s.add(14,4);
  53.         my_data_series.addSeries(s);
  54.         s = new XYSeries("Cluster4");
  55.         s.add(12,13);
  56.         s.add(13,12);
  57.         s.add(13,13);
  58.         s.add(14,14);
  59.         my_data_series.addSeries(s);
  60.         return my_data_series;
  61.     }
  62.
  63.     private static JFreeChart createChart(XYDataset dataset) {
  64.         JFreeChart chart = ChartFactory.createScatterPlot("Scatter Plot Demo 1",
  65.                 "X""Y", dataset, PlotOrientation.VERTICAL, truefalsefalse);
  66.
  67.         XYPlot plot = (XYPlot) chart.getPlot();
  68.         plot.setNoDataMessage("NO DATA");
  69.         plot.setDomainZeroBaselineVisible(true);
  70.         plot.setRangeZeroBaselineVisible(true);
  71.
  72.         XYLineAndShapeRenderer renderer
  73.                 = (XYLineAndShapeRenderer) plot.getRenderer();
  74.         renderer.setSeriesOutlinePaint(0, Color.black);
  75.         renderer.setUseOutlinePaint(true);
  76.         NumberAxis domainAxis = (NumberAxis) plot.getDomainAxis();
  77.         domainAxis.setAutoRangeIncludesZero(false);
  78.         domainAxis.setTickMarkInsideLength(2.0f);
  79.         domainAxis.setTickMarkOutsideLength(0.0f);
  80.
  81.         NumberAxis rangeAxis = (NumberAxis) plot.getRangeAxis();
  82.         rangeAxis.setTickMarkInsideLength(2.0f);
  83.         rangeAxis.setTickMarkOutsideLength(0.0f);
  84.
  85.         return chart;
  86.     }
  87.
  88.     /**
  89.      * Creates a panel for the demo (used by SuperDemo.java).
  90.      *
  91.      * @return A panel.
  92.      */
  93.     public static JPanel createDemoPanel() {
  94.         JFreeChart chart = createChart(createData());
  95.         ChartPanel chartPanel = new ChartPanel(chart);
  96.         //chartPanel.setVerticalAxisTrace(true);
  97.         //chartPanel.setHorizontalAxisTrace(true);
  98.         // popup menu conflicts with axis trace
  99.         chartPanel.setPopupMenu(null);
  100.
  101.         chartPanel.setDomainZoomable(true);
  102.         chartPanel.setRangeZoomable(true);
  103.         return chartPanel;
  104.     }
  105.
  106.     /**
  107.      * Starting point for the demonstration application.
  108.      *
  109.      * @param args  ignored.
  110.      */
  111.     public static void main(String[] args) {
  112.         ScatterPlotDemo1 demo = new ScatterPlotDemo1("Scatter Plot Demo 1");
  113.         demo.pack();
  114.         RefineryUtilities.centerFrameOnScreen(demo);
  115.         demo.setVisible(true);
  116.     }
  117.
  118. }
