[ ML In Action ] Decision Tree Construction

Preface :
在這裡我們將會介紹 decision tree-building 的演算法, 而使用的演算法將會利用 information theory 的原理來決定 decision tree 的分割以得到最佳的結果. 底下是使用 Decision tree 的概述 :

Decision Trees
Pros: Computationally cheap to use, easy for humans to understand learned results, missing values OK, can deal with irrelevant features.
Cons: Prone to overfitting
Works with: Numeric values, nominal values

Tree Construction :
在建立 Decision Tree 的過程中, 你將會不斷的對給定的 Data Set 進行 feature 的選用與切割. 假設你選定了某個 Feature, 接著這個 Feature 的 possible values 便成了 Decision Tree 的 Branches, 而整個 Decision Tree 的 nodes 會由 decision blocks (正方形) 與 terminating blocks (橢圓形) 組成. 而 terminating blocks 即為我們最終的分類 (Class). 底下為一 Decision Tree 範例 :


而切割後的 Data Set, 原先被切割的 Feature 已經被固定成某個值, 而切割後的 Set 我們稱為 Sub Data Set, 可以對剩下的 Features 繼續進行切割, 處理程序跟切割前大致不變, 因此我們可以使用 Recursive way 來撰寫這樣的函數 createBranch(), 底下為此函數的 pseudo code :

view plaincopy to clipboardprint?

1. Check if every item in the dataset is in the same class:
2.     If so return the class label
3.     Else
4.         find the "best feature" to split the data
5.         split the dataset
6.         create a branch node
7.             for each split
8.                 call createBranch and add the result to the branch node
9.         return branch node

在我們開始刻代碼前, 先來看看接下來會做那些事 :

General approach to decision trees
1. Collect: Any method.
2. Prepare: This tree-building algorithm works only on nominal values, so any continuous values will need to be quantized.
3. Analyze: Any method. You should visually inspect the tree after it is built.
4. Train: Construct a tree data structure.
5. Test: Calculate the error rate with the learned tree.
6. Use: This can be used in any supervised learning task.

這邊我們使用的演算法為 ID3, 透過它你將在每次切割 Feature 時選擇有較好的 Information gain 的 feature 進行, 一直到所有的 terminating node 都有一致的類別 ; 如果到最後還是沒有統一的類別, 就只能由多數的類別決定 terminating node 的類別.

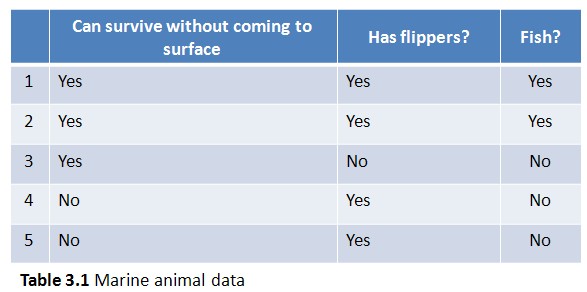

在開始處理演算法前, 照慣例先來看看我們處理的 Data set. 參考下表, 共有五筆記錄 ; 並提供兩個 features ; 而類別為 Fish or Not Fist :


- Information gain
在這邊我們使用的演算法會用到 Information theory 來決定每次切割前 Feature 的選定, 而選定的標準為選定的 Feature 有較高的 Information gain. 在 Information theory 中使用 Shannon entropy 或簡稱 entropy 來量測資料集上面帶有的 information. 對於entropy 的詳細定義這邊不會討論, 而只使用定義後的公式 :

Shannon denoted the entropy H of a discrete random variable X with possible values {x1, ..., xn} and probability mass function p(X) as,

I(X) is itself a random variable, and I is the information content of X

由上面的公式可以推論如果 p(xi) = 1, 則 H(X)=0 ; p(xi) = 0, 則 H(X)=0. 而 entropy 被定義為 "The expected value of the information". 而當 p(xi)=0 或 p(xi)=1 你可以解釋成當你已經可以百分百確定某事, 那麼它將不會帶來任何 information, 故 H(X)=0. 因此在 Decision Tree 的每次 Feature 切割後, entropy 的值會不斷的變小 (因為你越來越接近 classified 的結果). 底下為實作計算 entropy 的函數 :
- Listing 3.1 Function to calculate the Shannon entropy of a dataset

view plaincopy to clipboardprint?

1. def calcShannonEnt(dataSet):
2.         """ Function to calculate the Shannon entropy of a dataset"""
3.         numEntries = len(dataSet)
4.         labelCounts = {}
5.         for featVec in dataSet:
6.                 currentLabel = featVec[-1]
7.                 labelCounts[currentLabel] = labelCounts.get(currentLabel, 0) + 1
8.         shannonEnt = 0.0
9.         for key in labelCounts:
10.                 prob = float(labelCounts[key]) / numEntries
11.                 shannonEnt -= prob * log(prob, 2)
12.         return shannonEnt

為了來測試一下函數 calcShannonEnt(), 我們寫了另一個函數來取得測試用的 data set :

view plaincopy to clipboardprint?

1. def createTestDataSet():
2.         dataSet = [ [1, 1, 'yes'],
3.                     [1, 1, 'yes'],
4.                     [1, 0, 'no'],
5.                     [0, 1, 'no'],
6.                     [0, 1, 'no']]
7.         labels = ['no surfacing', 'flippers']
8.         return dataSet, labels

接著你便可以如下測試或計算 (上面的代碼撰寫於 tree.py 中.) :


- Splitting the dataset
在處理 dataset 過程中, 我們必需針對 Feature 對 dataset 進行切割 ; 而切割後 sub dataset 的該 Feature 那欄將被移除 :
- Listing 3.2

view plaincopy to clipboardprint?

1. def splitDataSet(dataSet, axis, value):
2.         """ Dataset splitting on a given feature
3.         - Argument
4.           * dataSet : 原始 data set
5.           * axis : 切割 Feature 的 column index.
6.           * value : 切割 Feature 的某個值."""
7.         retDataSet = []
8.         for featVec in dataSet:
9.                 if featVec[axis] == value:
10.                         reducedFeatVec = featVec[:axis]
11.                         reducedFeatVec.extend(featVec[axis+1:])
12.                         retDataSet.append(reducedFeatVec)
13.         return retDataSet

接著你便能如下測試切割函數的代碼 :


現在我們已經能切割 data set 與計算 entropy, 而每次要挑選 Feature 來進行切割的條件會選擇切割後有較大的 Information gain. 也就是maximum(IG(features)) ; IG(feature) = ig_orig - ig_new. (ig_orig=某 Feature 切割前的entropy; ig_new=某 Feature 切割後的entropy). 實作代碼如下 :
- Listing 3.3

view plaincopy to clipboardprint?

1. def chooseBestFeatureToSplit(dataSet):
2.         """ Choosing the best feature to split on
3.         - Argument
4.           * dataSet: 原始 data set
5.         - Return
6.           返回有最大 Information gain 的 Feature column."""
7.         numFeatures = len(dataSet[0]) - 1 # 最後一個欄位是 Label
8.         baseEntropy = calcShannonEnt(dataSet)
9.         bestInfoGain = 0.0 ; bestFeature = -1
10.         for i in range(numFeatures):
11.                 featList = [example[i] for example in dataSet]
12.                 uniqueVals = set(featList)
13.                 newEntropy = 0.0
14.                 for value in uniqueVals:
15.                         subDataSet = splitDataSet(dataSet, i, value)
16.                         prob = len(subDataSet) / float(len(dataSet))
17.                         newEntropy += prob * calcShannonEnt(subDataSet)
18.                 infoGain = baseEntropy - newEntropy  # Information gain: Split 會讓 data 更 organized, 所以 Entropy 會變小.
19.                 if infoGain > bestInfoGain:
20.                         bestInfoGain = infoGain
21.                         bestFeature = i
22.         return bestFeature

接著你可以如下測試 :

>>> reload(tree) # 重新載入 tree.py

>>> myDat, labels = tree.createTestDataSet() # 取回 test data set
>>> tree.chooseBestFeatureToSplit(myDat)
0 # 說明第一次切割選擇 Column0 的 Feature!

- Recursively building the tree
如果切割後出現有一致的 Class (Fish or Not Fish), 則該 Branch 的切割算是完成 ; 如果所有的 Feature 都切割完了, 仍然沒有一致的類別, 則只好採多數決的方法. 通常切割到最後, data set 的欄位會只剩下類別標籤, 可以透過下面方法反回多數的類別 :

view plaincopy to clipboardprint?

1. def majorityCnt(classList):
2.         """ Choose majority class and return.
3.         - Argument
4.           * classList: 類別的 List.
5.         - Return
6.           返回 List 中出現最多次的類別."""
7.         classCnt = {}
8.         for vote in classList:
9.                 classCnt[vote] = classCnt.get(vote, 0) + 1
10.         sortedClassCnt = sorted(classCnt.iteritems(),
11.                                 key = operator.itemgetter(1),
12.                                 reverse=True)
13.         return sortedClassCnt[0][0]

到目前為止我們所需要的功能都已經具備, 接著我們要寫一個 Recursive 函數來產出如下的 Decision Tree :


實作該 Recursive 函數代碼如下 :
- Listing 3.4

view plaincopy to clipboardprint?

1. def createTree(dataSet, labels):
2.         """ Tree-building code.
3.         - Argument
4.           * dataSet: 原始 data set
5.           * labels: 對應 class 標籤的文字說明.
6.         - Return
7.           返回建立的 Decision Tree."""
8.         classList = [example[-1] for example in dataSet]
9.         if classList.count(classList[0]) == len(classList):     # 所有的 class 都是同一類.
10.                 return classList[0]
11.         if len(dataSet[0]) == 1:                                # 已經沒有 feature 可以 split 了.
12.                 return majorityCnt(classList)
13.
14.         bestFeat = chooseBestFeatureToSplit(dataSet)
15.         bestFeatLabel = labels[bestFeat]
16.         myTree = {bestFeatLabel:{}}
17.         del(labels[bestFeat])
18.         featValues = [example[bestFeat] for example in dataSet]
19.         uniqueVals = set(featValues)
20.         for value in uniqueVals:
21.                 subLabels = labels[:]
22.                 myTree[bestFeatLabel][value] = createTree(splitDataSet(dataSet, bestFeat, value), subLabels)
23.         return myTree

可以如下測試代碼 :

>>> reload(tree)

>>> myDat, labels = tree.createTestDataSet()
>>> myTree = tree.createTree(myDat, labels)
>>> myTree
{'no surfacing': {0: 'no', 1: {'flippers': {0: 'no', 1: 'yes'}}}}

Plotting trees in Python with Matplotlib annotations :
雖然 Decision Tree 的資料以經可以成功 train 出來, 不過不夠直覺. 因此我們將透過 Matplotlib 套件幫我們將 Decision Tree 視覺化, 以提高 Human readability. 完整代碼如下 :
- Listing 3.7

view plaincopy to clipboardprint?

1. import matplotlib.pyplot as plt
2.
3. decisionNode = dict(boxstyle="sawtooth", fc="0.8")
4. leafNode = dict(boxstyle="round4", fc="0.8")
5. arrow_args = dict(arrowstyle="<-")
6.
7. def getNumLeafs(myTree):
8.     numLeafs = 0
9.     firstStr = myTree.keys()[0]
10.     secondDict = myTree[firstStr]
11.     for key in secondDict.keys():
12.         if type(secondDict[key]).__name__=='dict':#test to see if the nodes are dictonaires, if not they are leaf nodes
13.             numLeafs += getNumLeafs(secondDict[key])
14.         else:   numLeafs +=1
15.     return numLeafs
16.
17. def getTreeDepth(myTree):
18.     maxDepth = 0
19.     firstStr = myTree.keys()[0]
20.     secondDict = myTree[firstStr]
21.     for key in secondDict.keys():
22.         if type(secondDict[key]).__name__=='dict':#test to see if the nodes are dictonaires, if not they are leaf nodes
23.             thisDepth = 1 + getTreeDepth(secondDict[key])
24.         else:   thisDepth = 1
25.         if thisDepth > maxDepth: maxDepth = thisDepth
26.     return maxDepth
27.
28. def plotNode(nodeTxt, centerPt, parentPt, nodeType):
29.     createPlot.ax1.annotate(nodeTxt, xy=parentPt,  xycoords='axes fraction',
30.              xytext=centerPt, textcoords='axes fraction',
31.              va="center", ha="center", bbox=nodeType, arrowprops=arrow_args )
32.
33. def plotMidText(cntrPt, parentPt, txtString):
34.     xMid = (parentPt[0]-cntrPt[0])/2.0 + cntrPt[0]
35.     yMid = (parentPt[1]-cntrPt[1])/2.0 + cntrPt[1]
36.     createPlot.ax1.text(xMid, yMid, txtString, va="center", ha="center", rotation=30)
37.
38. def plotTree(myTree, parentPt, nodeTxt):#if the first key tells you what feat was split on
39.     numLeafs = getNumLeafs(myTree)  #this determines the x width of this tree
40.     depth = getTreeDepth(myTree)
41.     firstStr = myTree.keys()[0]     #the text label for this node should be this
42.     cntrPt = (plotTree.xOff + (1.0 + float(numLeafs))/2.0/plotTree.totalW, plotTree.yOff)
43.     plotMidText(cntrPt, parentPt, nodeTxt)
44.     plotNode(firstStr, cntrPt, parentPt, decisionNode)
45.     secondDict = myTree[firstStr]
46.     plotTree.yOff = plotTree.yOff - 1.0/plotTree.totalD
47.     for key in secondDict.keys():
48.         if type(secondDict[key]).__name__=='dict':#test to see if the nodes are dictonaires, if not they are leaf nodes
49.             plotTree(secondDict[key],cntrPt,str(key))        #recursion
50.         else:   #it's a leaf node print the leaf node
51.             plotTree.xOff = plotTree.xOff + 1.0/plotTree.totalW
52.             plotNode(secondDict[key], (plotTree.xOff, plotTree.yOff), cntrPt, leafNode)
53.             plotMidText((plotTree.xOff, plotTree.yOff), cntrPt, str(key))
54.     plotTree.yOff = plotTree.yOff + 1.0/plotTree.totalD
55. #if you do get a dictonary you know it's a tree, and the first element will be another dict
56.
57. def createPlot(inTree):
58.     fig = plt.figure(1, facecolor='white')
59.     fig.clf()
60.     axprops = dict(xticks=[], yticks=[])
61.     createPlot.ax1 = plt.subplot(111, frameon=False, **axprops)    #no ticks
62.     #createPlot.ax1 = plt.subplot(111, frameon=False) #ticks for demo puropses
63.     plotTree.totalW = float(getNumLeafs(inTree))
64.     plotTree.totalD = float(getTreeDepth(inTree))
65.     plotTree.xOff = -0.5/plotTree.totalW; plotTree.yOff = 1.0;
66.     plotTree(inTree, (0.5,1.0), '')
67.     plt.show()
68.
69. def retrieveTree(i):
70.     listOfTrees =[{'no surfacing': {0: 'no', 1: {'flippers': {0: 'no', 1: 'yes'}}}},
71.                   {'no surfacing': {0: 'no', 1: {'flippers': {0: {'head': {0: 'no', 1: 'yes'}}, 1: 'no'}}}}
72.                   ]
73.     return listOfTrees[i]

接著你便可以使用函數 createPlot() 將我們 train 出來的 Decision Tree 畫出來. 測試如下 :

>>> import tree, treePlotter
>>> myTree = treePlotter.retrieveTree(0)
>>> treePlotter.createPlot(myTree)

執行後產生下圖 :


Testing and storing the classifier :
目前 createTree() 已經能幫我們建立 train 完後的 Decision tree, 接著我們要撰寫可以透過傳入的 Decision tree 與 sample , 而返回 classified 後的結果. 代碼如下 :
- Listing 3.8

view plaincopy to clipboardprint?

1. def classify(inputTree, featLabels, testVec):
2.         """ Classification function for an existing decision tree"""
3.         firstStr = inputTree.keys()[0]                                          # 取出第一個 decision block
4.         secondDict = inputTree[firstStr]                                        # 取出對應 decision block 的 sub decision tree.
5.         featIndex = featLabels.index(firstStr)                                  # 取出該 decision block 對應 feature 的欄位.
6.         for key in secondDict.keys():
7.                 if testVec[featIndex] == key:                                   # 如果 testVec 在該 feature 的值等於 subdecision tree 的 key
8.                         if type(secondDict[key]).__name__ == 'dict':            # 如果該 feature value 的 branch 是 tree, 則繼續 classify.
9.                                 classLabel = classify(secondDict[key], featLabels, testVec)
10.                         else: return secondDict[key]                            # 如果該 feature value 的 branch 是 class, 則立即返回.
11.         return classLabel

接著我們可以如下測試 :

>>> import tree, treePlotter
>>> myDat, labels = tree.createTestDataSet()
>>> myTree = treePlotter.retrieveTree(0)
>>> myTree
{'no surfacing': {0: 'no', 1: {'flippers': {0: 'no', 1: 'yes'}}}}
>>> tree.classify(myTree, labels, [1, 0]) # surfacing & no flippers
'no'
>>> tree.classify(myTree, labels, [1, 1]) # surfacing & has flippers
'yes'

- Use: persisting the decision tree
這邊我們希望已經建好的 Decision Tree 離開程式後, 下次能夠重覆使用而不用重新 train. 這個需求可以藉由 Python module pickle 達成. 因此下面我們使用函數 storeTree() 將 decision tree 存成檔案提供下次使用 ; 函數 grabTree() 則用來載入 storeTree() 輸出的檔案 :
- Listing 3.9

view plaincopy to clipboardprint?

1. def storeTree(inTree, filename):
2.         import pickle
3.         fw = open(filename, 'w')
4.         pickle.dump(inTree, fw)
5.         fw.close()
6.
7. def grabTree(filename):
8.         import pickle
9.         fr = open(filename)
10.         return pickle.load(fr)

你可以如下測試 :

>>> tree.storeTree(myTree, 'classifierStoreage.bin')
>>> tree.grabTree('classifierStoreage.bin')
{'no surfacing': {0: 'no', 1: {'flippers': {0: 'no', 1: 'yes'}}}}

相關代碼可以在 這裡下載 (Ch03).
